$2,800.00

In Stock SKU: TRVC16-C-1600000-RSR

MODEL/DESC: VCOG



Magnification: 1-6x
Objective: 24mm
Field of View: 95-15.90 ft @ 100 yds
Eye Relief: 4"
Length: 10.05"
Weight: 23.20 oz
Reticle: Black
Parallax Adjustment: Red Segmented Circle/Crosshair
Adj Size: 1 Click @ 100m
Proofs: 10.4-3.81mm
Coating Type: Waterproof

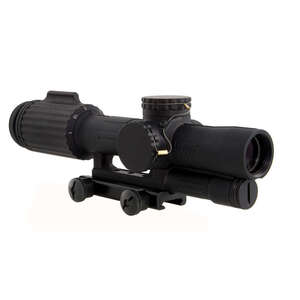

VCOG™ 1-6x24 Riflescope Segmented Circle / Crosshair .223 / 55 Grain Ballistic Reticle w/ TA51 Mount



The Trijicon 1-6x24 VCOG™ (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.), the VCOG comes standard with a quick-release mount for any 1913 Picatinny rail.


The VC16-C-1600000 also includes:

  • 1 Thumb Screw Mount (TA51)
  • 1 Lithium AA Battery
  • 1 LENSPEN® (TA56)
  • 1 Trijicon Logo Sticker (PR15)
  • 1 Manual 1 Warranty Card

Specifications:

  • Magnification: 1-6x
  • Objective Size: 24
  • Bullet Drop Compensator: Yes
  • Weight (oz): 23.2 (w/o mount or battery)
  • Illumination Source: LED
  • Reticle Pattern: Segmented Circle / Crosshair
  • Day Reticle Color: Red
  • Night Reticle Color: Red
  • Calibration: .223 / 55 grain
  • Bindon Aiming Concept: Yes
  • Eye Relief: 4 in. Constant
  • Exit Pupil: 0.41 - 0.15 in.
  • Field of View (Degrees): 18.0 - 3.0
  • Field of View @ 100 yards (ft): 95 - 15.9
  • Adjustment @ 100 yards (clicks/in): 1 click @ 100m = 1/2 in.
  • Mount Comes With: TA51
  • Housing Material: Forged Aluminum
  • Batteries: 1 AA Alkaline or Lithium Battery
  • Battery Life: 715 hours continuous use at brightness setting 4 of 6
  • Focal Plane: First
  • Adjustment Range: Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA

UPC 719307320000
MFG trijicon
MFG NUM VC16C1600000
MODEL VCOG
FEATURES Magnification: 1-6x Objective: 24mm Field of View: 95-15.90 ft @ 100 yds Eye Relief: 4" Length: 10.05" Weight: 23.20 oz Reticle: Black Parallax Adjustment: Red Segmented Circle/Crosshair Adj Size: 1 Click @ 100m Proofs: 10.4-3.81mm Coating Type: Waterproof
LENGTH 16.50
WIDTH 7.50
HEIGHT 5.50
WEIGHT 3.60
WEIGHTLBS 3.60
